2025 EvoR Plant Setup Kit - OLED/INA219 CODE: MERCATV2.3




2025 EvoR Plant Setup Kit - OLED/INA219 CODE: MERCATV2.3
Description Update on: Nov. 20, 2024
The EvoR is the current model which was released late November of 2023. The EvoX line of Plant Setups have been wrapped up from its production years of 2020-2023.
The EvoR, in addition to other features, incorporates a new modulation for further range and increased tenacity to penetrate concrete and steel buildings.

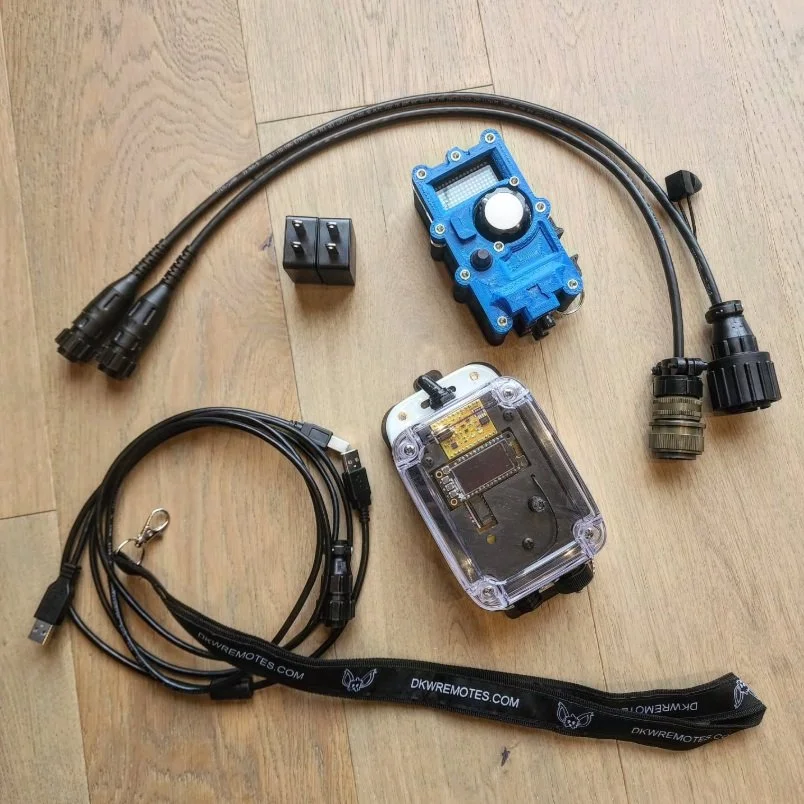

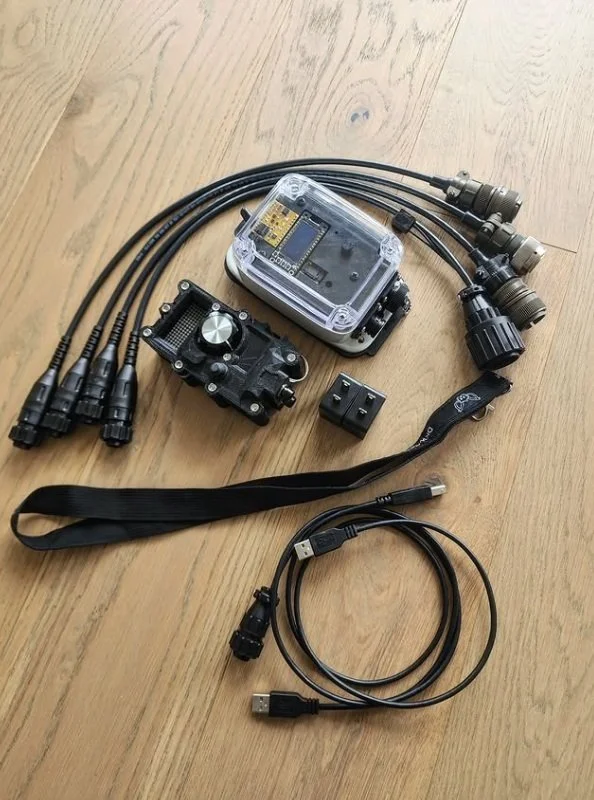

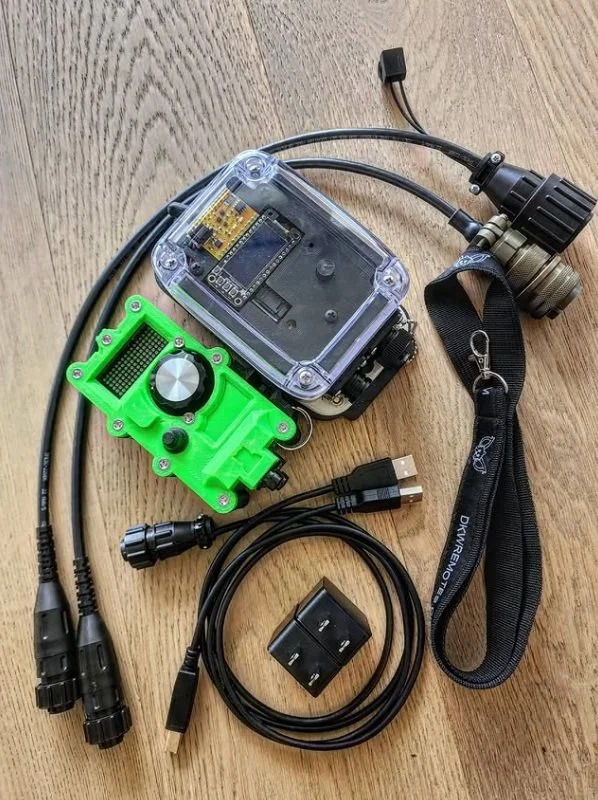

You are buying a hand remote, hand remote charge cord, receiver unit, receiver charge cord, two charge blocks. USB port plug, lanyard, three stickers.
The unit will arrive to uncharged. The receiver board is V2.3, has a battery charge board, BMSV2.0. It has two LEDS on it. one green and one red. the red one will denote charging. The green says it’s all good. The OLED screen of the EVOR receiver will also display live current charging amounts when plugged in and in the ON position. There is also a wireless way of checking receiver battery with the hand remote. But, that is for another day.
Currently the receiver has a 10000ma battery. It charges regardless of on or off provided you are above freezing. At freezing and colder, the charging circuit suspends charging.
The first of two drop down menus, allows you to select the adapters you require. The first selection which costs +0, you receive a 14pin miller adapter and a 6pin Lincoln adapter. You may select a third adapter of your choice, and of course, may select all four available adapters.
