This is the ultimate setup. Pulse is activated on this unit. Latest hand remote code 044 and receiver code M1.9 // Product description to follow. See youtube video below https://youtu.be/nz3FvcCFBg8

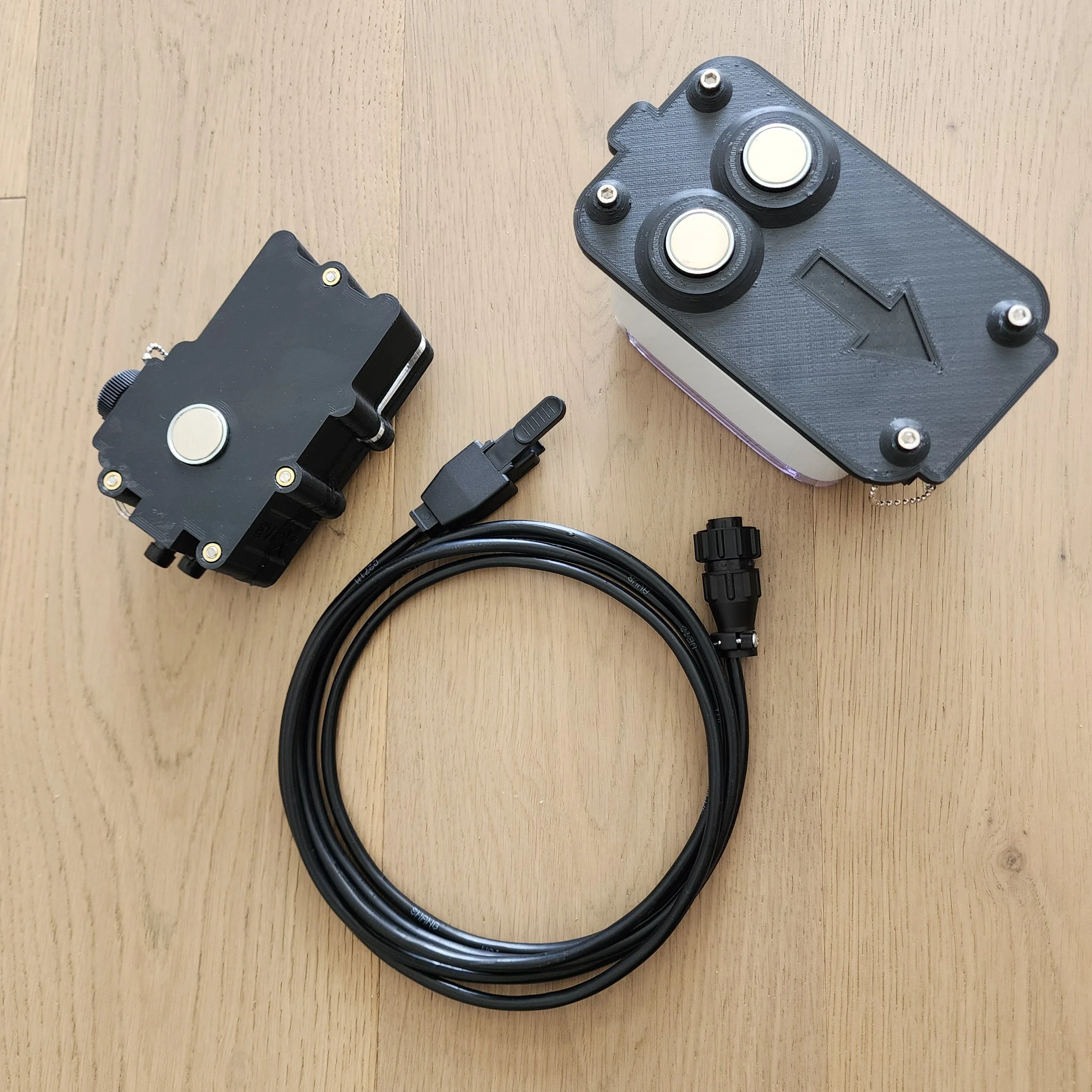

What we have is a tig torch momentary on/off toggle switch repurposed with code. Instead of controlling the contact pins on your machine, it will allow you to change your amps incremently up and down. Default setting is 5 amp increments.

The steps are:

1. Turn on your receiver 2. Turn on your hand remote 3. Thread on the AmazonToggle. 4. Set your desired start point in amps with the hand remote dial 5. Hold hand remote bottom button and depress the toggle. At that point, it will either say "BUTT ON!" or "T ON!" depending which function is pre-selected.

1. "Butt ON!" function is a classci up5 down5 scenario. Single tap to go Up5. Double tap to go Down5

2. "T ON!" is a 2T tig sloping function. When engaged, the receiver will slope output to minimum and your hand remote will blink denoting standby. You may adjust amps at this point without affecting output. Once ready to weld, depress and hold toggle for 2.5 seconds and your output will rise to the selected amps. At this point, the attachment will work like the "Butt On!" function. Once you are done welding, should you decide to slope down, depress the toggle again for 2.5 seconds and the receiver will slope down to minimum. This is only available and compatible for a 043 hand remote code and a M1.9 receiver code.
